ISO K Clamp Type Flange Table:
| Stock ID | A | B (Recomended Tube Size) |
|---|---|---|
| ISO63K-BL | 63 | BLANK |
| ISO63K | 63 | 73 |
| ISO80K-BL | 83 | BLANK |
| ISO80K | 83 | 89 |
| ISO100K-BL | 101 | BLANK |
| ISO100K | 101 | 108 |
| ISO160K-BL | 153 | BLANK |
| ISO160K | 153 | 159 |
| ISO200K-BL | 213 | BLANK |
| ISO200K | 213 | 219 |
| ISO250K-BL | 261 | BLANK |
| ISO250K | 261 | 267 |
| ISO320K-BL | 318 | BLANK |
| ISO320K | 318 | 324 |
| ISO400K-BL | 400 | BLANK |
| ISO400K | 400 | 406 |
| ISO500K-BL | 501 | BLANK |
| ISO500K | 501 | 508 |
| ISO630K-BL | 651 | BLANK |
| ISO630K | 651 | 660 |
| ISO800K-BL | 800 | BLANK |
| ISO800K | 800 | 813 |
| ISO1000K-BL | 1000 | BLANK |
| ISO1000K | 1000 | 1016 |
Dimensional Drawings
These drawings are to be used in conjunction with the CF Flange table

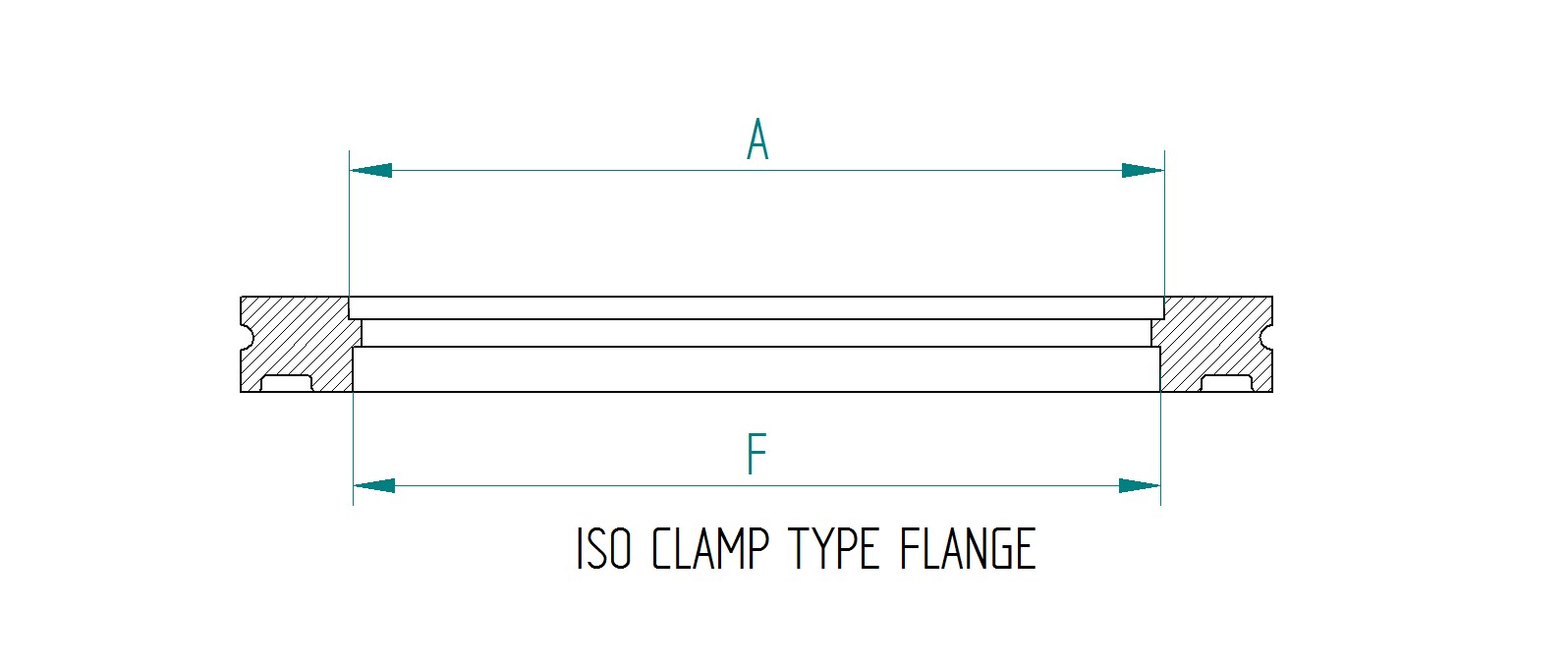

ISO K Flange
