304L SS CF Flange Tees
| Stock ID | CF Flange | A |
|---|---|---|
| TCF-34 | 34 | 38 |
| TCF-50 | 50 | 52 |
| TCF-70 | 70 | 62 |
| TCF-86 | 86 | 81 |
| TCF-100 | 100 | 104 |
| TCF-150 | 150 | 110 |
| TCF-150 | 150 | 135 |
| TCF-200 | 200 | 140 |
| TCF-200 | 200 | 167 |
| TCF-250 | 250 | 190 |

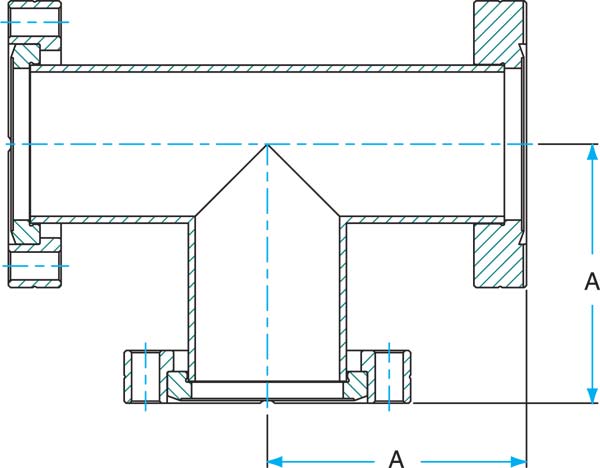

304L SS Tees
This drawing is for use with CF flange tees table
